This manual describes the operation and characteristics of the PM TERMINAL module.

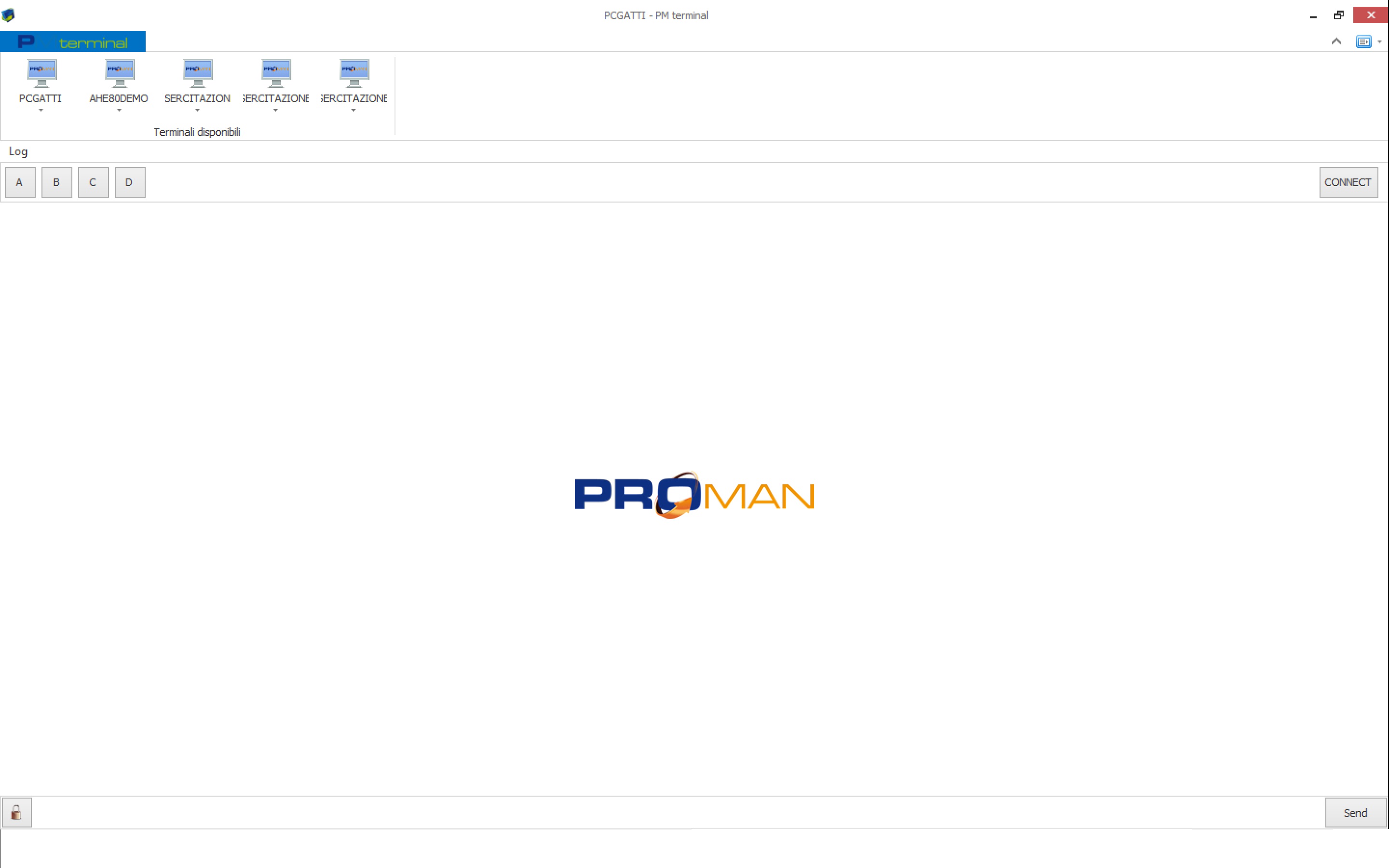

PM Terminal is the final step that allows us to test and test the behavior of our state machines on the graphic terminal,the first screen will be as follows:




PM terminal consists of the following items (which will be discussed in detail in the next chapter):


  1. PM Terminal: Serves to configure the various terminals
  2. Log: Opens log screens
  3. Connect: To start terminal
  4. Input bar
